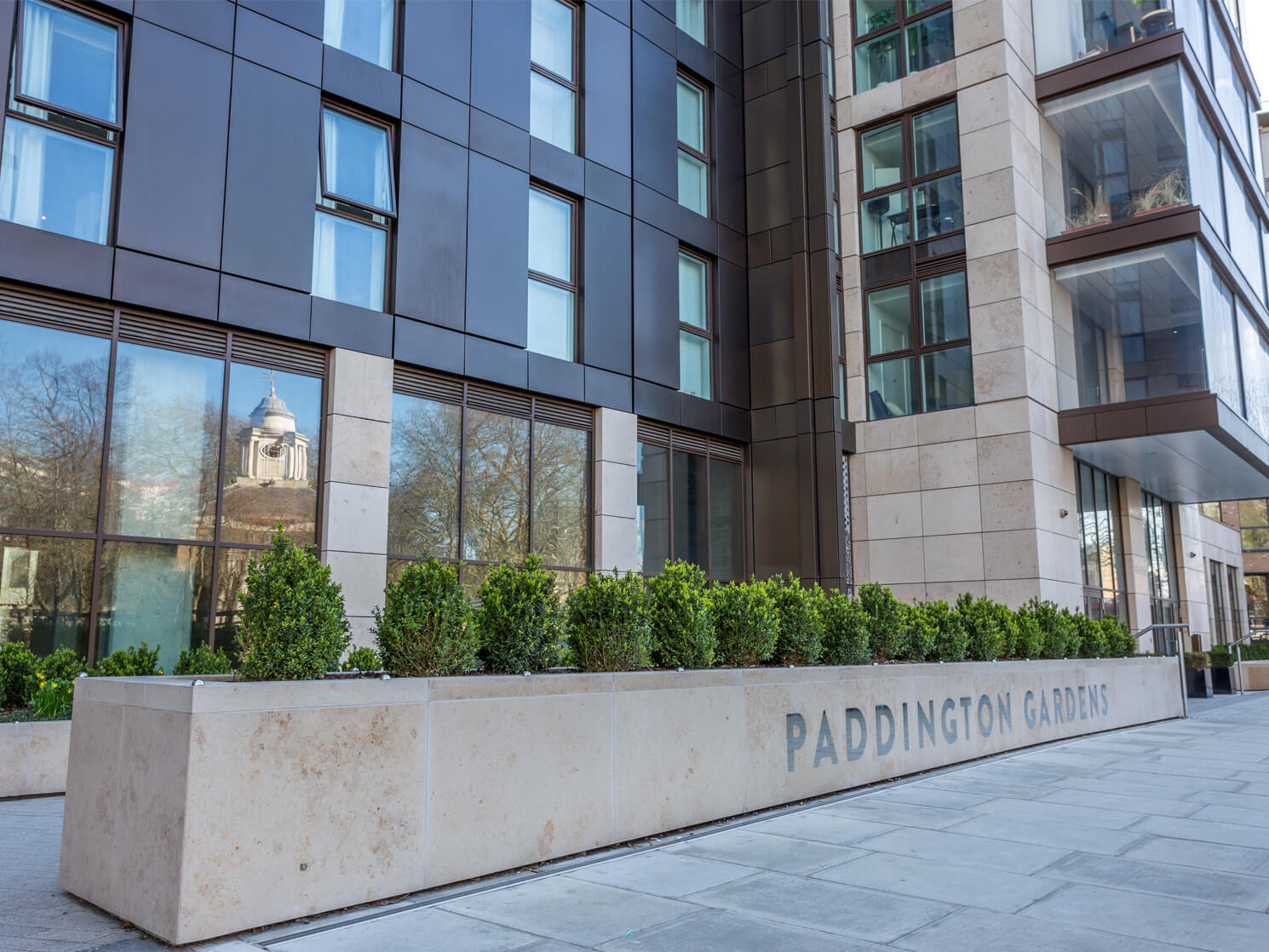

North Wharf Gardens presents a unique opportunity to create a new pocket park in an urban quarter of Paddington, encapsulating a unique set of culture-led, place making ideas which will contribute to Westminster’s cultural identity.

SCOPE OF ROOFING WORKS

We have built the roofing systems from the concrete slab up to include waterproofing, insulation, stones and paving to allow for services to be maintained. We have also installed all Fall Protection Systems and Window Cleaning Strategy and Equipment.

Roofs & Terraces
Generation 2 hot melt system with reinforcement fleece and felt protection, XPS extruded insulation and British Standard paving on adjustable supports.

Balconies
Cold applied waterproofing system reinforced with fleece and extruded XPS insulation used.

Mansafe System
Fixed line and anchor system to the roofs and Davit Arms with Inspection chambers for the Cleaning Strategy.

SCOPE OF GROUNDWORKS

In this projects we installed the aggregate substrate and weed protection layers throughout as well as finishes including Drainage Channels, Edging, Granite Paving Sets & Kerbs and a Resin Bound Finish installed in front of the entrances to the towers.

Granite Paving
The Paving is laid on compacted 2-6mm limestone aggregate and finished with brushed in anthracite grout bordered by matching granite kerbs. Matching granite steps and borders as per client details.

Resin Bound
This is laid on a 100mm dense layer of tarmac and split through colour matched movement joints.
